How do I choose the right IP rating for a 3 phase distribution box used outdoors?

Choosing the right IP rating for an outdoor 3 phase distribution box requires selecting at least IP54 for basic splash protection, while IP65 or higher is recommended for complete dust tightness and protection against water jets in heavy rain or washdown environments. Selecting the proper rating ensures safety, prevents water ingress, and maintains the integrity of internal components.

Core Solutions & Key Takeaways

• Minimum Safety Threshold: Outdoor environments demand at least an IP54 rating, but open-air applications exposed to direct rainfall require IP65 to prevent harmful water ingress.
• Environmental Adaptation: High IP-rated enclosures are deployed in outdoor municipal engineering, garden landscape projects, and industrial logistics to deliver reliable overload protection.
• Structural Integrity: Using a 1.2mm thick iron sheet enclosure with pure copper busbars ensures mechanical resilience and high electrical conductivity in variable climates.
• Rigorous Testing: Standardized laboratory sampling, raw material inspection, and 100% production line testing guarantee the long-term reliability of outdoor electrical installations.

Detailed Architectural/Principle Analysis

An Ingress Protection (IP) rating consists of two digits. The first digit (0–6) measures protection against solid particles like dust, while the second digit (0–9) measures protection against water. For outdoor 3 phase distribution boards, dust-tight construction (represented by the digit 6) is vital to block microscopic particles from entering the electrical chamber, preventing premature wear on internal switches and copper contacts.

When selecting a distribution board for outdoor and municipal engineering, water protection is equally critical. Low-pressure water jets from rain or maintenance washing can penetrate lower-rated enclosures, causing immediate short circuits. Utilizing certified enclosures, such as those verified under High-tech Enterprise standards for distribution boxes, provides confidence in demanding environments.

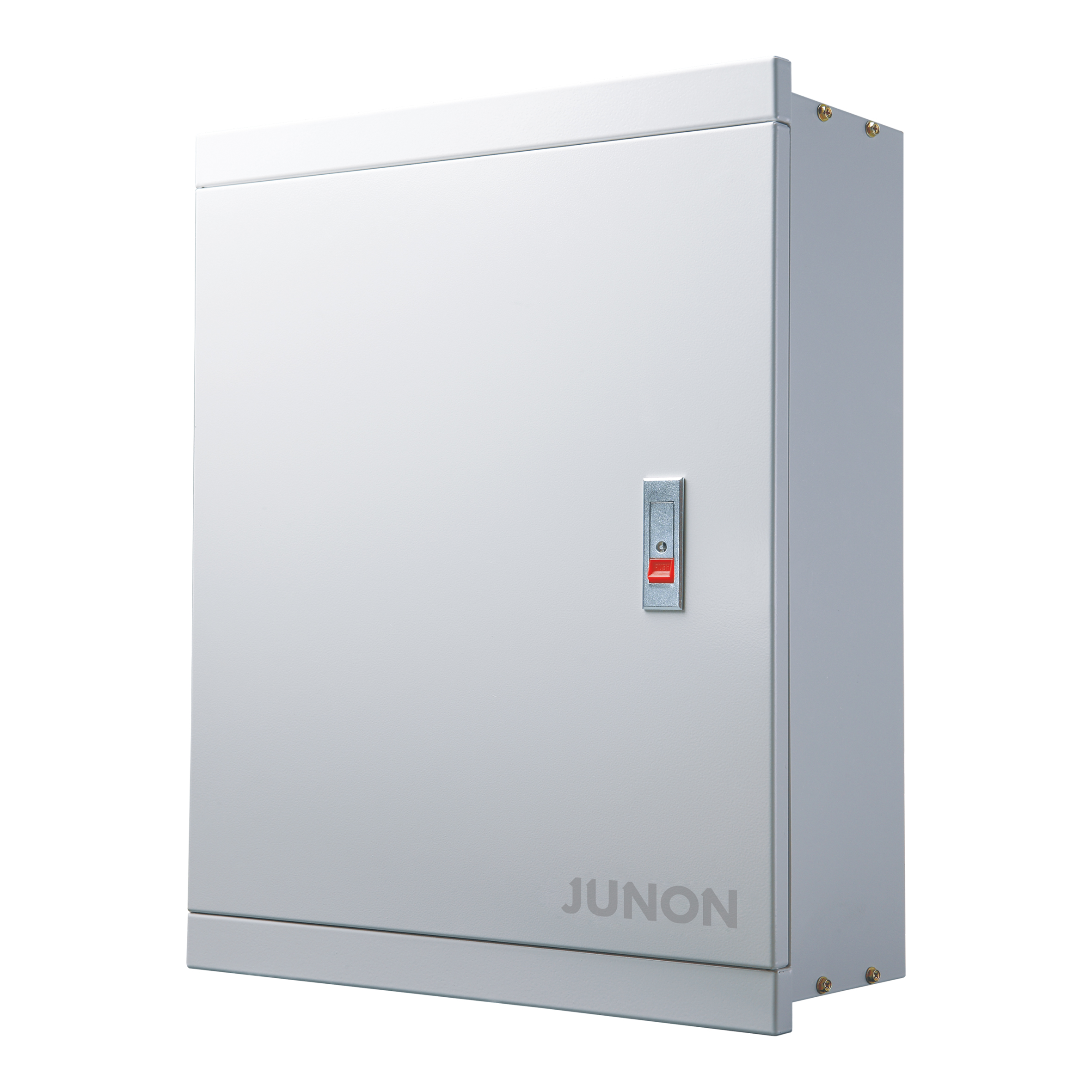

In actual engineering projects, contractors rely on specific configurations to match harsh climates. For instance, the V16 series 3 phase distribution box features a 1.2mm thick iron sheet frame and pure copper busbars to withstand environmental stress. Feedback from installation sites in international hotel and residential projects, including developments in Kenya and the Philippines, indicates that IP65-rated enclosures function efficiently in outdoor garden circuit control without safety deterioration.

Additionally, keeping manufacturing standards aligned with global certifications like ISO 9001 and CE ensures the enclosure's sealing materials retain elasticity under thermal cycles. This prevents the degradation of gasket seals over years of solar exposure, preserving the original IP rating.

Data/Solution Comparison

The following table outlines the protection levels and recommended outdoor scenarios for different enclosure specifications:

Frequently Asked Questions (FAQ)

What are the risks of using a distribution box with an inadequate IP rating outdoors?

An inadequate rating allows moisture and dust to enter, leading to rapid terminal corrosion, short circuits, and localized thermal damage that compromises the entire 3-phase power supply.

Is a 1.2mm thick iron sheet sufficient for outdoor enclosures?

Yes. A 1.2mm thick iron sheet provides excellent physical protection against mechanical impacts. When properly treated and sealed with high-quality gaskets, it easily meets IP65 waterproof standards.

What certifications ensure a distribution box is suitable for global deployment?

Deployments are supported by certifications such as CE, CB, and RoHS, alongside quality management credentials like ISO 9001:2015, ensuring the units meet international electrical safety and manufacturing standards.

Final Conclusion & Recommendations

For standard outdoor installations, choosing an IP65-rated 3 phase distribution box represents the safest and most practical solution. This rating protects sensitive 24-way internal wiring, pure copper busbars, and terminal bars from rain and windblown dust. Procurement and delivery can be coordinated through established supply chains supporting Ocean Freight and Air Freight to ensure safe transit. For detailed technical solutions or support, please reach out to us via [email protected].
