What IP rating do I need for a surface mounted distribution box outdoors?

Outdoors, a surface mounted distribution box requires a minimum IP rating of IP54 for semi-sheltered areas, whereas a rating of IP65 or IP66 is highly recommended for fully exposed environments. These higher ratings provide dust-tight seals and safeguard internal electrical wiring against rain, windblown dust, and low-to-high pressure water sprays.

Core Solutions & Key Takeaways

• Minimum Protective Baseline: Deploy IP54-rated enclosures in sheltered outdoor areas like covered balconies, while using IP65 or IP66 enclosures for direct exposure to open weather.
• Material Integrity: Utilize enclosures constructed with polycarbonate (PC) plastic covers and robust baseboxes to ensure long-term resistance against UV radiation and impact.
• Internal Component Security: High IP-rated boxes prevent moisture from oxidizing vital internal components, such as pure copper busbars and terminal bars.
• Proven Field Reliability: Commercial contractors across global municipal and building developments in the Philippines, Kenya, and Kazakhstan specify IP65 enclosures to secure outdoor circuit controls.

Detailed Architectural/Principle Analysis

An Ingress Protection (IP) rating consists of two digits defined by international standards. The first digit (0 to 6) indicates the level of protection against solid objects and dust. The second digit (0 to 9) represents protection against moisture and water. For outdoor surface mounted distribution boxes, physical integrity depends on sealing out both elements to avoid internal short circuits and corrosion.

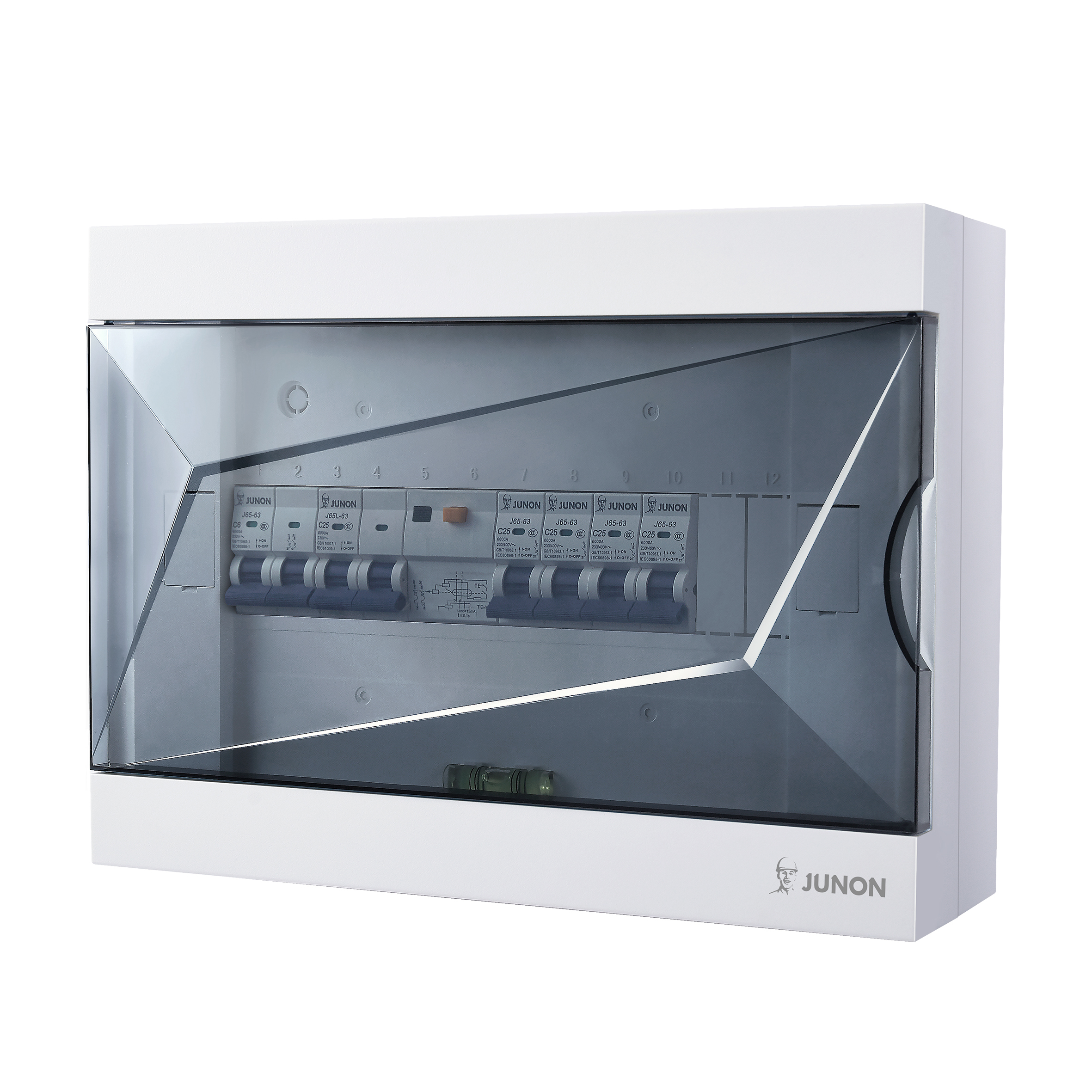

Standard indoor units, such as the C6 series 12 way surface mounted distribution box with a plastic base, are engineered for residential and domestic interiors. These indoor-grade boxes rely on a sturdy PC plastic cover and basebox to guard against accidental contact, but they lack the heavy-duty gaskets required to repel water. If exposed to the elements, moisture quickly penetrates the enclosure, causing thermal degradation of the pure copper busbar and terminal bars.

To withstand open-air environments, outdoor-rated distribution enclosures incorporate advanced elastomeric seals and robust locking mechanisms. Manufacturers like Guangdong JUNON Songtian Electrical Appliance Co.,Ltd, utilizing 81 sets of injection molding machines and 130 sets of automated production machines, produce specialized structures that maintain tight seals under shifting ambient temperatures. These designs successfully pass strict quality inspections to protect sensitive electrical hardware against dust ingress and pressurized water jets.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Selecting the precise IP rating for your surface mounted distribution box prevents downtime and expensive component failure. For standard covered environments, IP54 enclosures suffice, but fully exposed municipal, industrial, or residential settings demand IP65 or IP66 enclosures to guarantee total protection. Sourcing certified products from verified industrial suppliers ensures system reliability. Our production network offers flexible global delivery, accommodating ocean freight and air shipment with competitive payment options like T/T and L/C. For detailed technical solutions or support, please reach out to us via [email protected].
