What wall depth is standard for sourcing flush recessed distribution boxes?

Standard wall depth for sourcing flush recessed distribution boxes typically ranges from 70mm to 90mm, depending on whether the installation is in solid masonry or drywall. Selecting enclosures within this range ensures compliance with standard global partition dimensions, allowing the units to sit perfectly flush without compromising structural wall integrity.

Core Solutions & Key Takeaways

• Drywall and Masonry Compatibility: A recessed depth between 75mm and 85mm fits standard internal partitions, preventing the box from protruding or breaching the rear of the wall.
• Structural Rigidity: Utilizing a 1.2mm thick iron sheet for the enclosure body protects the internal components from lateral pressure during wall plastering or concrete curing.

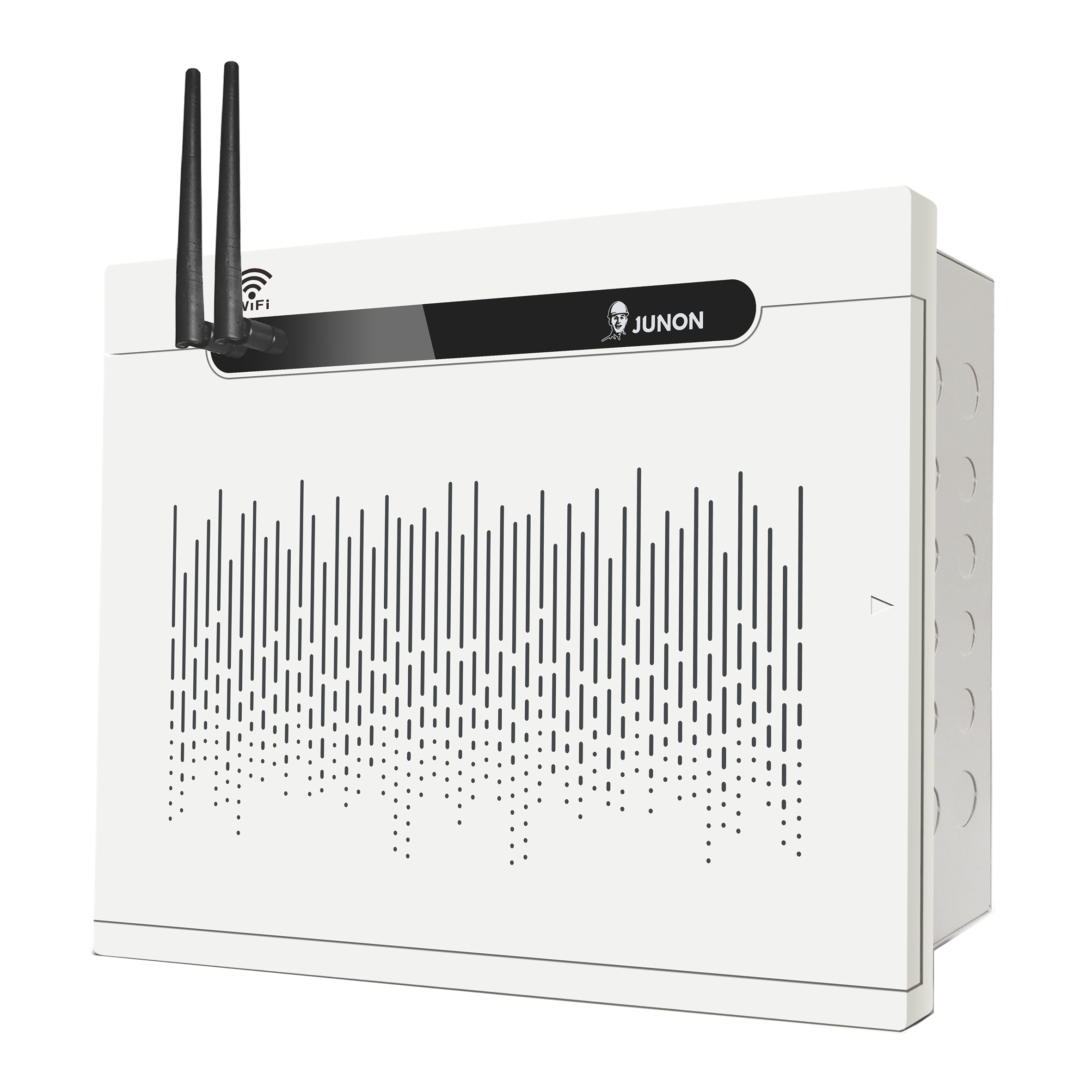

• Optimized Wiring Space: Modern flush units, such as the R20 series 7U multi media box, feature dedicated internal layouts with pure copper busbars and terminal bars to maximize wiring efficiency in confined depths.
• Application Adaptation: These dimensions support diverse environments including Residential & Domestic Applications, as well as Commercial & Hospitality Applications like hotels, retail spaces, and offices.

Detailed Architectural/Principle Analysis

Flush recessed distribution boxes require careful depth calculation during the building design phase. In typical residential and commercial developments, internal walls measure between 100mm and 120mm in total thickness. A standard recessed box depth of 70mm to 90mm leaves adequate rear clearance to preserve acoustic insulation and fire-barrier ratings. Sourcing units that exceed 95mm in depth can result in installation failures, particularly in drywall partition framing where metal studs limit the available cavity space.

The mechanical integrity of the box is equally important. When recessed into concrete or brickwork, the surrounding wall material exerts significant pressure. Enclosures engineered with a 1.2mm thick iron sheet body withstand these forces without warping, ensuring that the front PC cover aligns seamlessly with the finished wall surface. Inside the box, heavy-duty electrical connections require high-conductivity components. Incorporating pure copper busbars and terminal bars ensures low resistance, reducing localized thermal buildup inside the enclosed, unventilated wall cavity.

Real-world projects validate the importance of these dimensional standards. For example, the Seda Vertis North hotel project in Quezon City, Philippines, successfully integrated 438 pcs of distribution boxes into its building layout. Similarly, the Garden Inn Nairobi Airport project in Kenya utilized 200 sets of distribution enclosures matching these structural parameters. These installations demonstrate that adhering to standardized flush recessed depths minimizes on-site modification costs and ensures compliance with regional safety codes.

Data/Solution Comparison

To assist procurement teams in choosing the correct specifications, the table below compares the R20 series 7U multi media box against generic alternatives:

Frequently Asked Questions (FAQ)

What is the risk of using a flush distribution box that is too deep?
If the box depth exceeds the wall stud or brick cavity depth, the enclosure will protrude from the wall. This prevents the front panel or PC cover from sitting flush, spoiling the interior aesthetic and exposing the enclosure edges to physical damage.

Why is iron sheet thickness critical for recessed installations?
During wet-trade construction (plastering or concrete pouring), the pressure exerted on the hollow box can cause thin metal walls to buckle inward. A thickness of 1.2mm provides the structural rigidity needed to maintain the box's rectangular shape so that the internal chassis and external cover fit correctly.

Are flush recessed boxes suitable for both power and multi-media wiring?
Yes, modern multi-media flush boxes, like the R20 series, are designed specifically to house low-voltage components, routers, and electrical wiring. Their standardized depths allow them to be installed side-by-side with main electrical distribution boards in residential or commercial hallways.

Final Sourcing Recommendations

When sourcing flush recessed distribution boxes for large-scale developments, prioritize structural materials, heat dissipation capability, and standardized depths. Selecting models that feature a 1.2mm iron sheet and pure copper busbars guarantees long-term durability and safety. Under a full industrial chain model, bulk procurement orders are supported with a minimum order quantity (MOQ) of 500 pcs per model, with standard delivery times ranging from 30 to 45 days depending on project requirements.
